Gamia Steel Spiral Staircase

Building Regulations - Please read and understand before purchase

It is important to check the suitability of your chosen spiral with your local building control department before purchasing. Their requirements will vary depending on the use of the spiral and it’s setting. It is our clients responsibly to ensure the relevant permissions have been sought and granted prior to making any purchase.
We are happy to answer any questions you might have before your purchase but it is your building control officer that will have the final say. We are on 01794 522444

Gamia Steel Spiral Staircase

5-7 weeks delivery

Prices include VAT and UK mainland delivery

£1,475.00 – £3,480.00

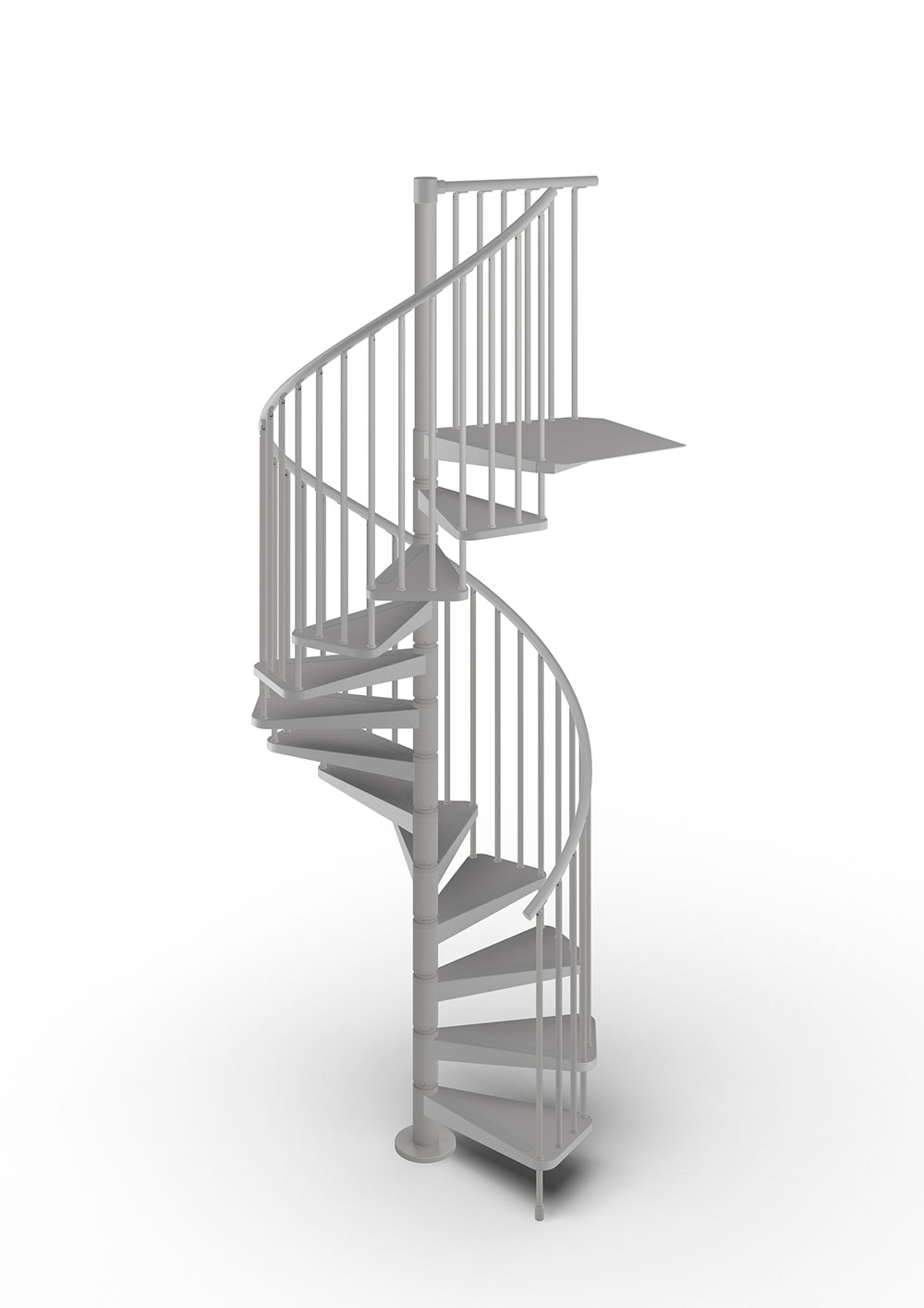

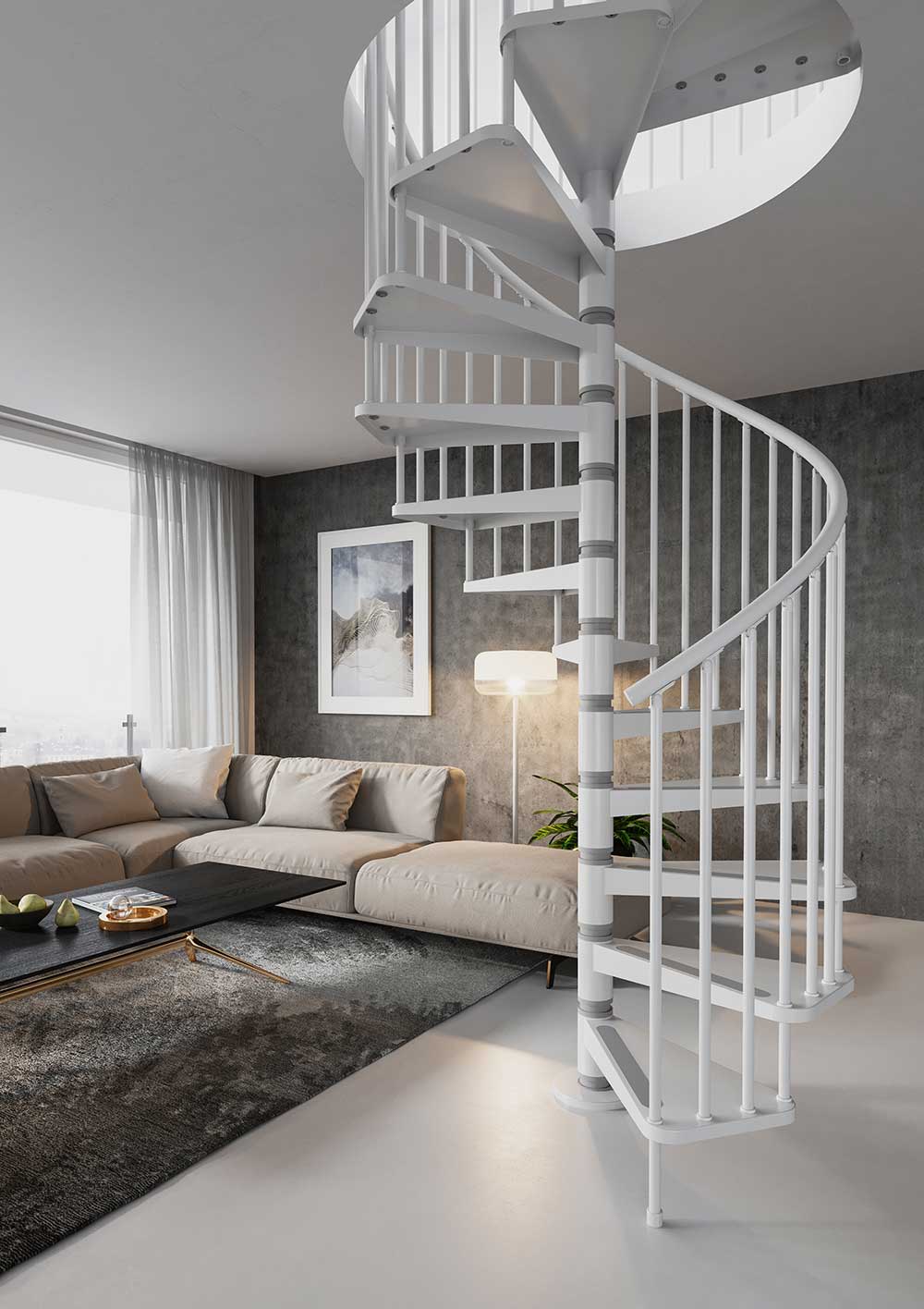

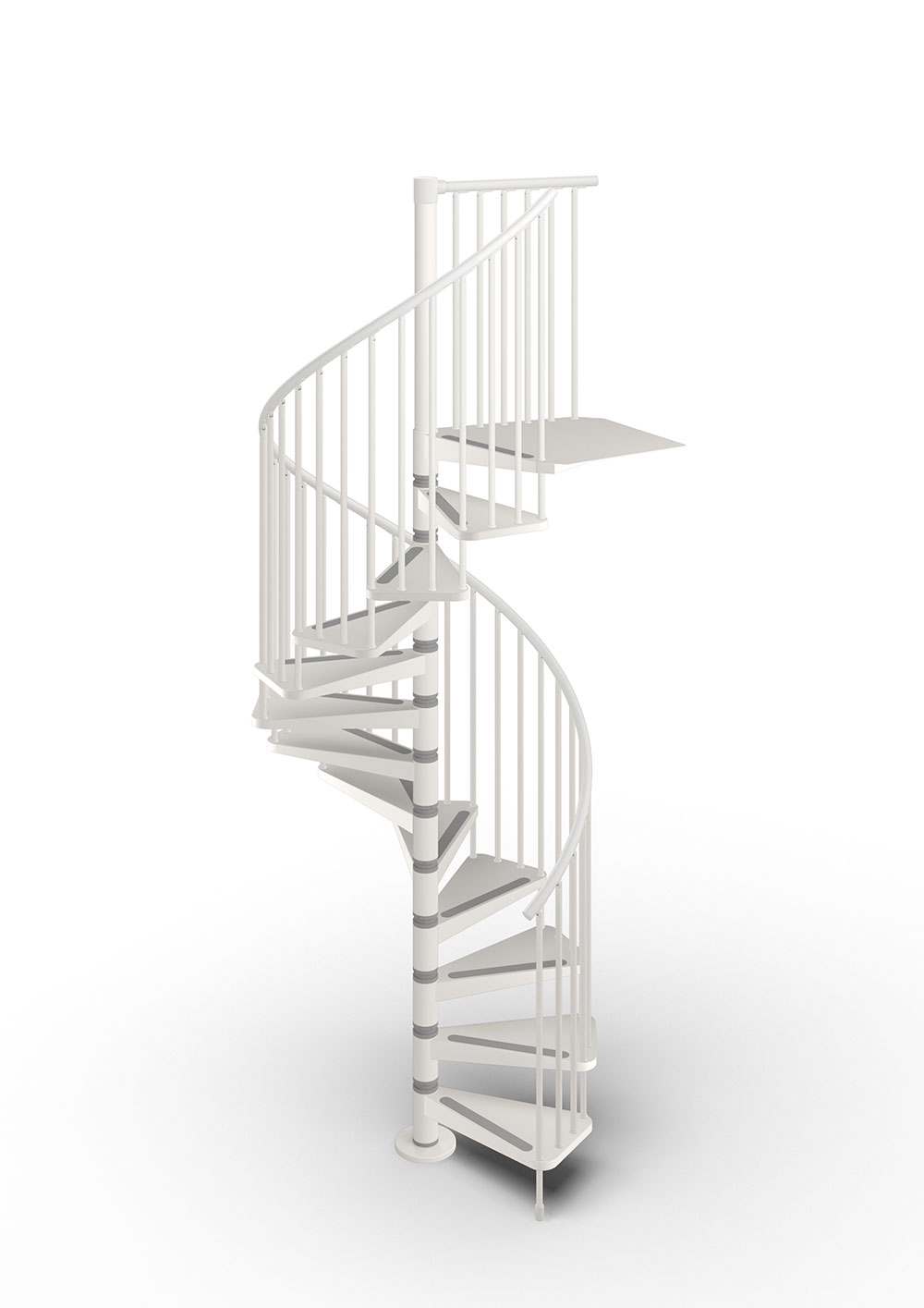

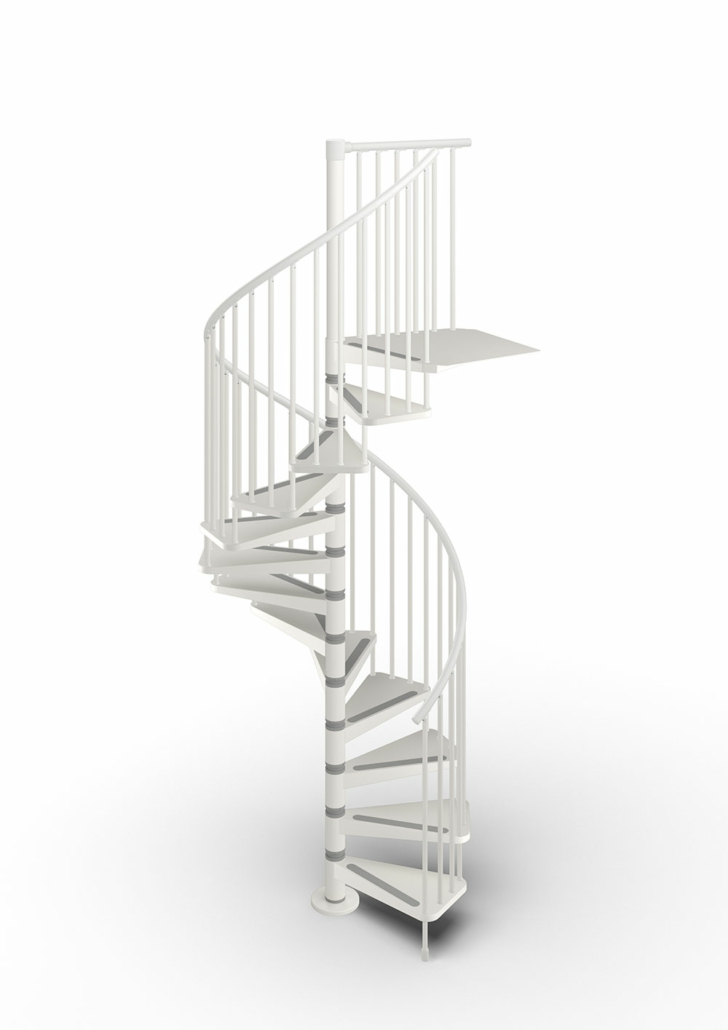

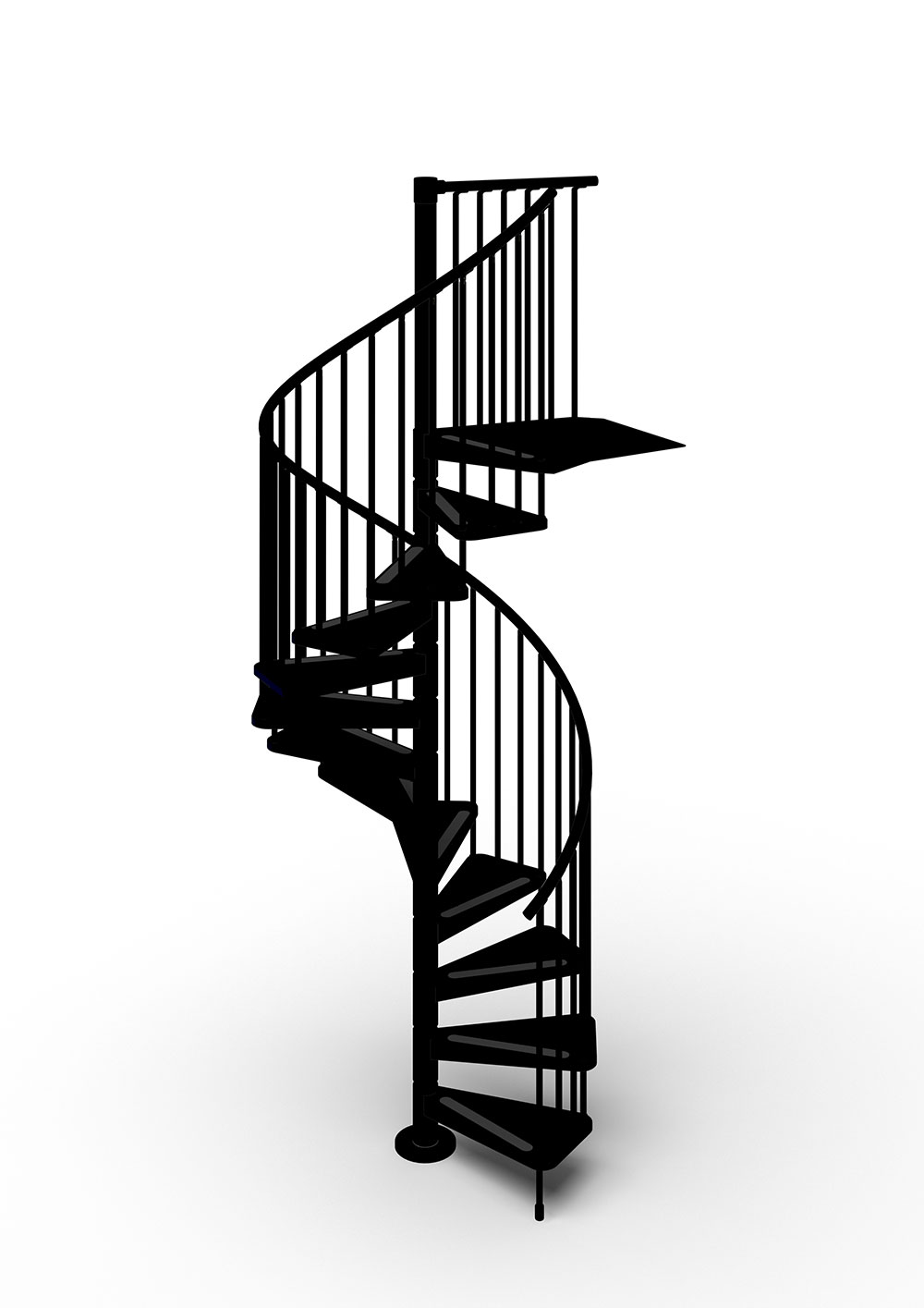

The Gamia Steel Spiral Staircase offers a cost effective and stylish solution for a secondary domestic spiral stair. Available in a number of funky colours and supplied in three different diameters, the Gamia steel offers a versatile match for your refurbishment or loft conversion. The height of each step is adjustable on site and the stair can be assembled in a clockwise or anticlockwise rotation.

Floor to Floor Height

Diameter

Steelwork Finish

Riser Bars

Landing Balustrade

Clear

SKU: N/A Categories: Gamia Steel Spiral Stair, metal spiral staircase, steel spiral stair

Prices above for the White model only. If you are interested in the other colours please get in touch.

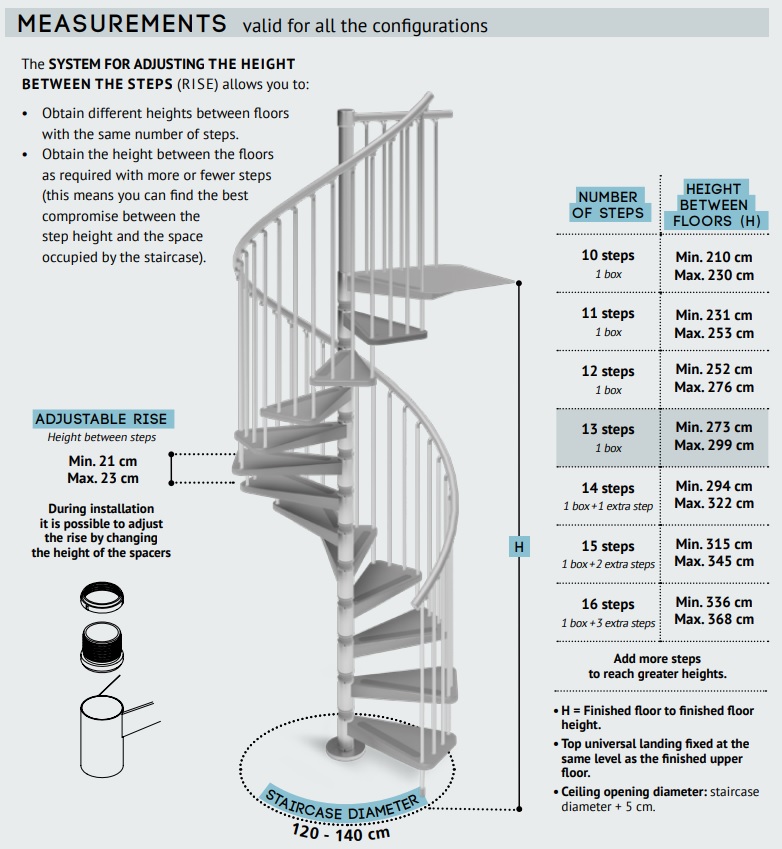

Technical Information

Application	Internal Use
Heights	2100-3680mm (for others please contact office)
Diameters	1200mm, 1400mm
Treads	Pressed Steel with non slip adhesive strip
Spindles	22mm diameter steel
Handrail	42mm diameter Nylon – Supplied Silver Grey on all steel colour options apart from black when the handrail is also black
Top Platform	Special universal platform

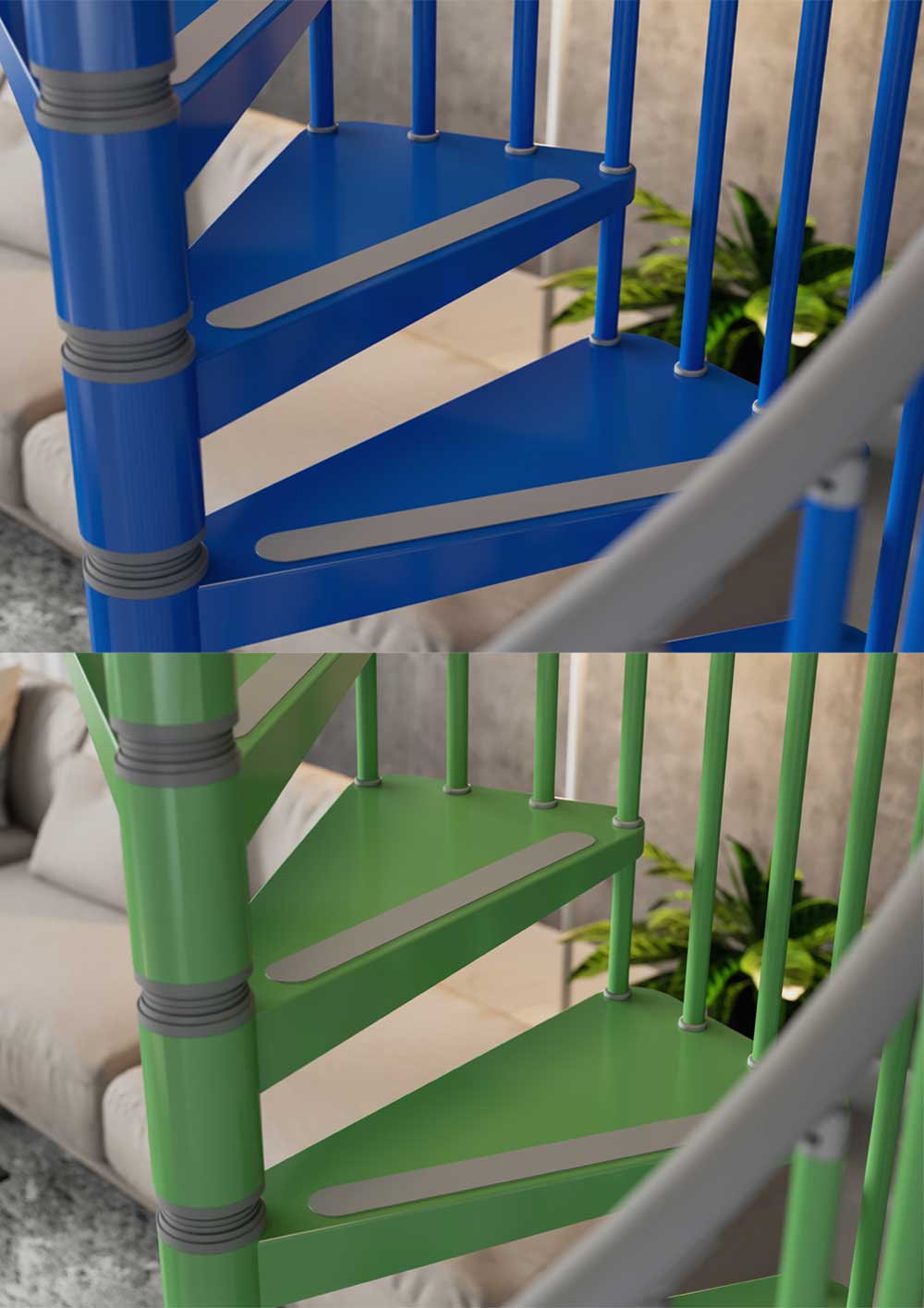

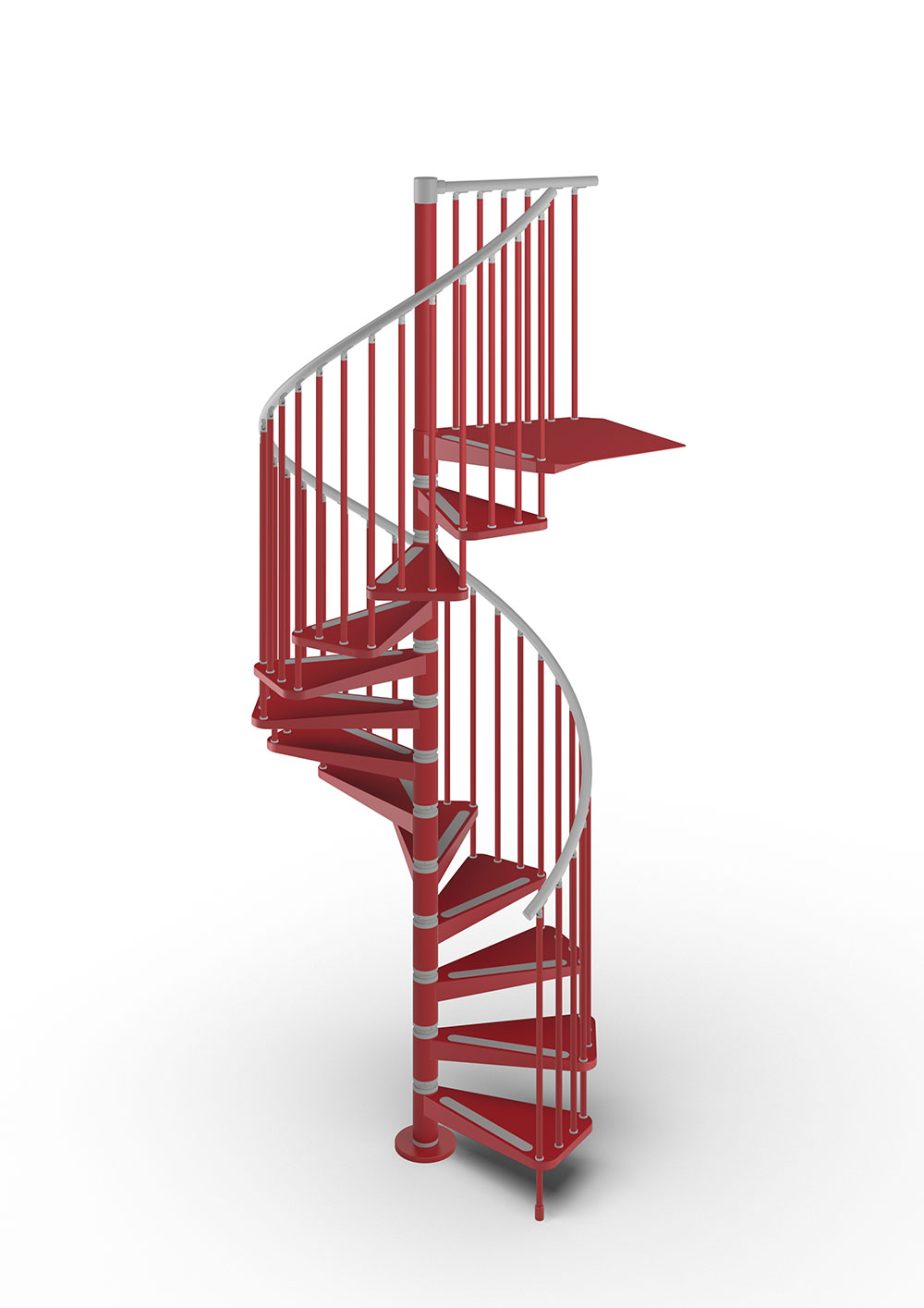

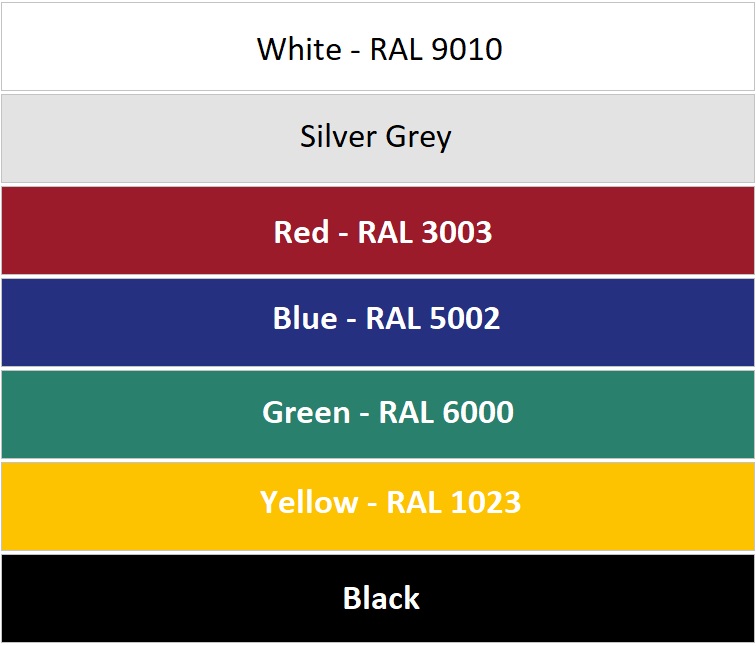

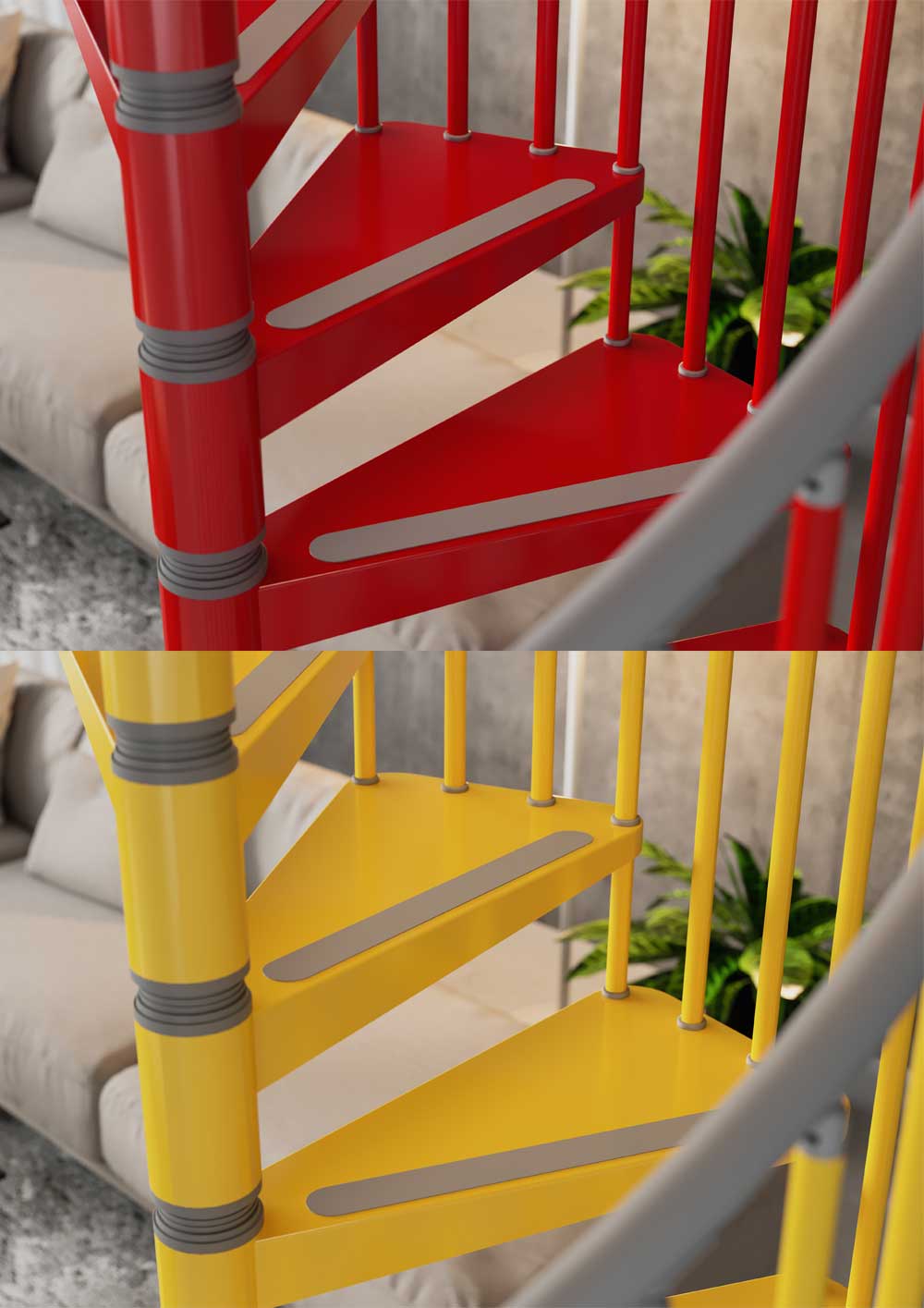

Finish of Steelwork	Powder Coated – White (RAL 9010) Silver Grey Red (RAL3003) Yellow (RAL 1023) Blue (RAL 5002) Green (RAL 6000) Black

Need some assistance? Speak to the spiral experts 01794 522444

Riser infill Bars

Riser bars are can be added to the order to reduce the gap between the steps.

In the UK the regulations specify a maximum gap between the treads of 100mm. This is to prevent small children falling through the gap.

These riser bars are formed with a 20mm steel bar which is fitted horizontally between the steps which keeps the riser open whilst reducing the gap.

The riser bars can be added to the order above by simply selecting YES on the riser bar drop down.

If you are unsure if you require them, please check with your building control officer.

These can be fitted retrospectively once the stair is assembled but should they are ordered separately, a further delivery charge would be due.

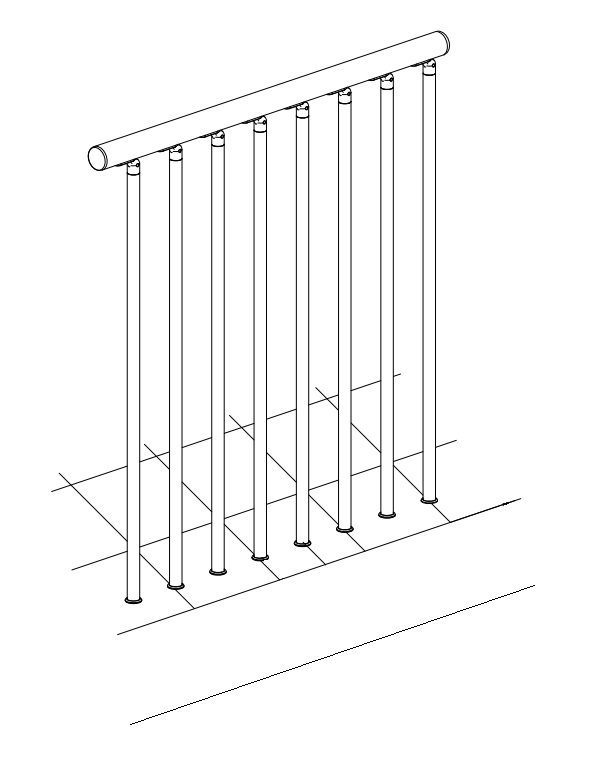

Balustrade for Landing

Landing balustrade is available and sold in 1m length kits. Each kit can be adjusted and cut to suit and can be fitted in a straight run or curved.

An individual kit consists of;-

8 x 20mm diameter Steel spindles
1m length of handrail to match stair
1 x floor support post
1 x handrail to handrail connecting piece
1 x spindle to spindle connector
1 x spindle to wall connector

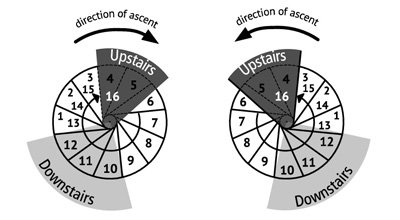

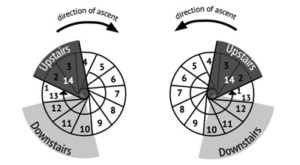

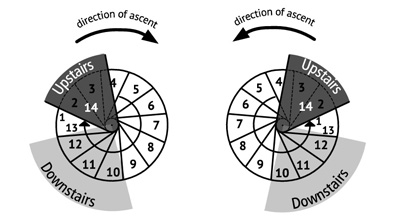

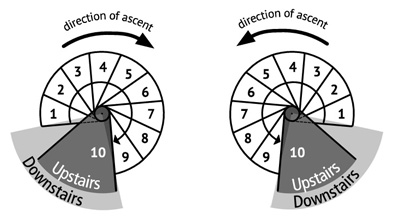

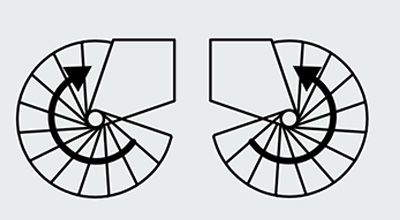

Gamia Steel Spiral Staircase Rotations

Clockwise or Anticlockwise

10 Risers

Clockwise & Anticlockwise

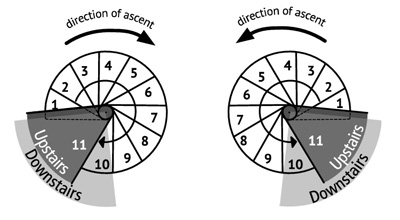

11 Risers

Clockwise & Anticlockwise

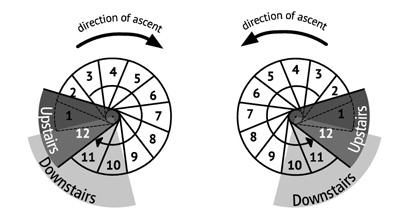

12 Risers

Clockwise & Anticlockwise

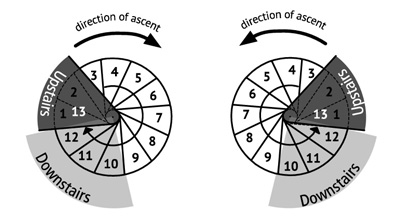

13 Risers

Clockwise & Anticlockwise

14 Risers

Clockwise & Anticlockwise

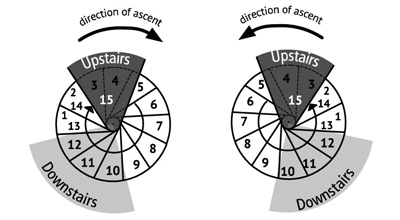

15 Risers

Clockwise & Anticlockwise

16 Risers

Clockwise & Anticlockwise

Delivery Info

The Gamia Steel Spiral Staircase is considered a custom made order and it is sourced directly from the factory in Italy and delivered to your door.

Delivery times are typically between 4 and 6 weeks from order but this can increase over summer and Christmas periods.

As this is a custom made product we are not able to accept cancelations.

When the staircase arrives in the UK, the transport company will call you directly to arrange a suitable day for delivery. This is a ‘kerbside’ delivery with most vehicles equipped with a tail-lift and pump truck so the pallet can be wheeled to a safe location across even terrain. A signature will be required to accept the goods and confirm they have arrived in good condition. The delivery company generally delivers between 8am and 5pm during the week.

Delivery is included to mainland UK destinations.

For Northern Ireland, the Channel Islands, Scottish Isles and Isle of Wight and Isle of Man, please call the office for a door to door shipping cost.

01794 522444 info@spiralstairsystems.co.uk

Frequently asked Questions

What Size of opening do I need in the floor?

The hole in the upper floor should be at least 50mm larger than the spiral diameter you are buying. This is to allow for a knuckle gap clearance as you ascend the spiral. The opening in the floor can be circular or square. For example, a 1500mm diameter spiral would need a 1550mm diameter or 1550 x 1550mm square minimum hole size.

How long does delivery take?

The Gamia Steel Spiral Staircase is made to order and produced in Italy. It generally takes 4-6 weeks to received your spiral.

What Diameter do I need?

Your requirement will vary depending on the application, the opening you have in the floor above and the building regulations. If you have building control officer involved with the work you are doing, please check what diameter they would be happy with as they are signing off the work. Generally, higher traffic areas would require a larger diameter and low traffic areas would have a smaller diameter.

How difficult is the spiral to install?

In the majority of instances, the spiral is installed in a day by 2 people. This of course will depend on the competency of the individuals and the height of the stair and the amount of landing balustrade. Some customers opt to employ a builder or carpenter whist more experienced DIYers tackle it themselves.

Where does the spiral start and finish?

The entry and exit points of the spiral are a crucial element to consider. If you have a look at the above plan drawings you will be able to see where you get on and get off the spiral. Each model can be assembled clockwise or anticlockwise. If in doubt – please get in touch – 01794 522444.
