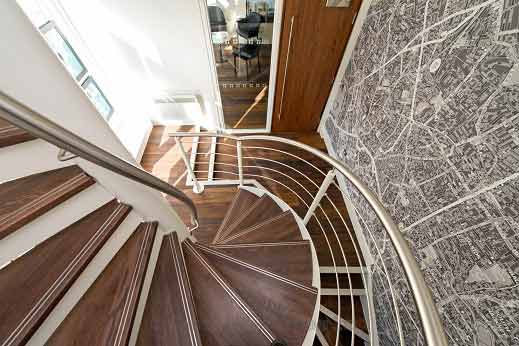

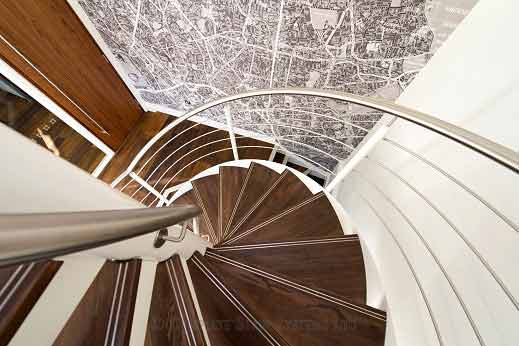

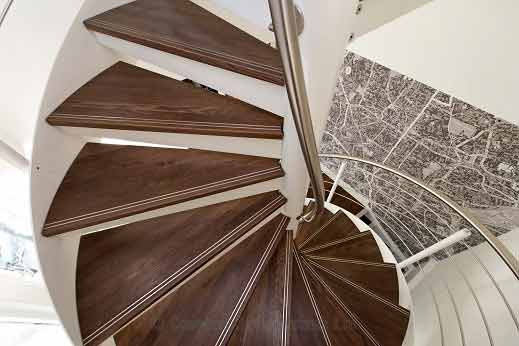

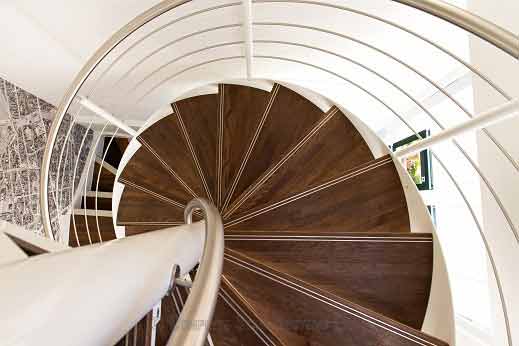

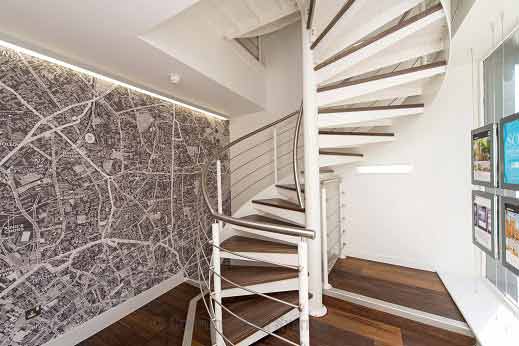

Walnut Spiral Staircase Islington
This bespoke spiral staircase was supplied to a property developer involved in creating a new estate agents in Islington, north London.
Our client was a large construction firm refurbishing a commercial property in Islington, London. A feature spiral staircase was required to create a ‘grand entrance’ for the new premier estate agency who would shortly be taking residence.
The spiral staircase was to span over two floors or the property previously occupied by a take away restaurant. The ‘feature’ was created with solid walnut treads (to match the new flooring), a swooping external stringer in steel, a stainless steel handrail and several horizontal stainless steel bars forming the balustrade.
Being a bespoke spiral staircase, the riser height and going were made specifically for this project – matching the commercial regulations for the application.
For a price for your own Spiral Staircase Islington for your project, commercial or domestic, please fill out the form below.
Spiral Staircase Islington
Technical Specification
Floor to floor height | 3053mm & 3246mm |
Risers | 16 & 17 risers |
Spiral Diameter | 2000mm |
Clear Tread Width | 800mm |
Tread Type | 30mm Walnut |
Balustrade Type | 4 x 10mm Ø horizontal stainless steel bars |
Handrail | 42,4mm Ø Steel |
Finish of steel |
Powder Coated White |
External Stringer |
280 x 8mm external steel stringer |
Additional | matching landing balustrade at each level |
