Steel Spiral Staircase Titchfield

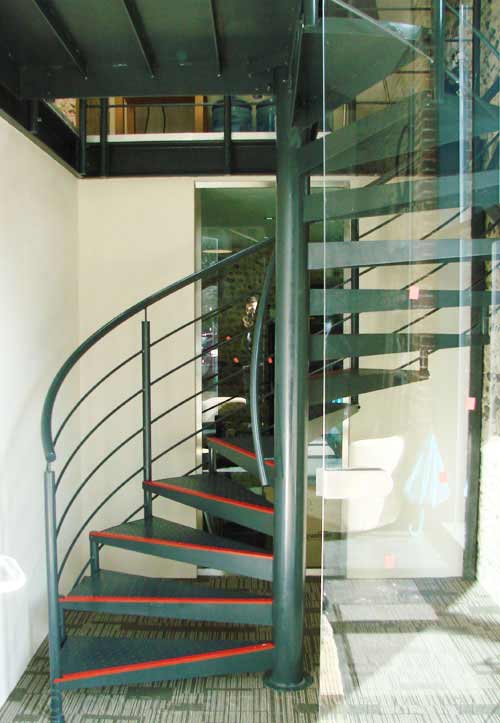

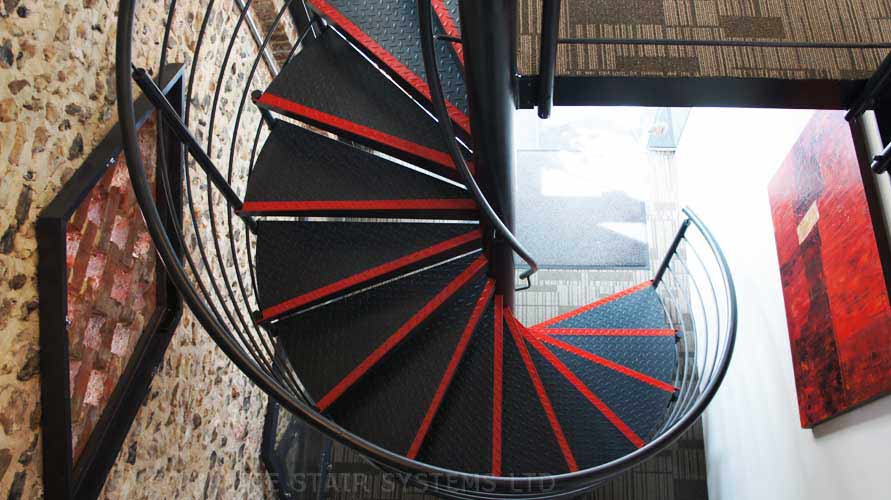

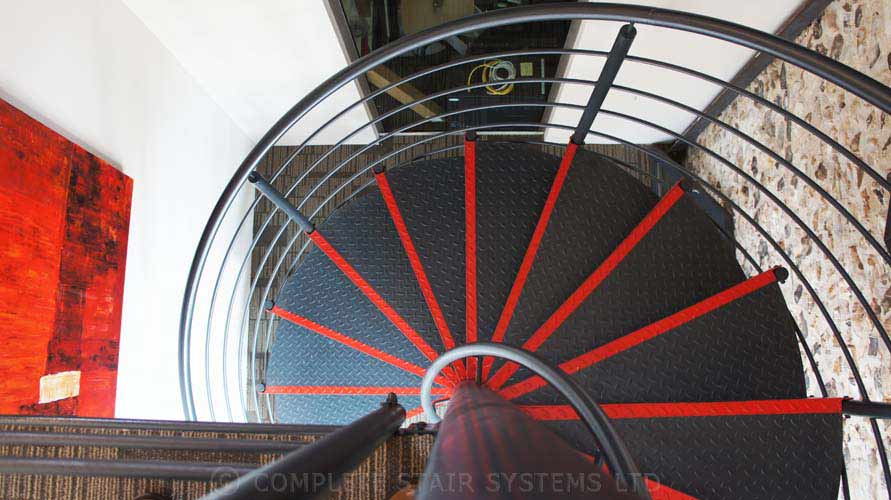

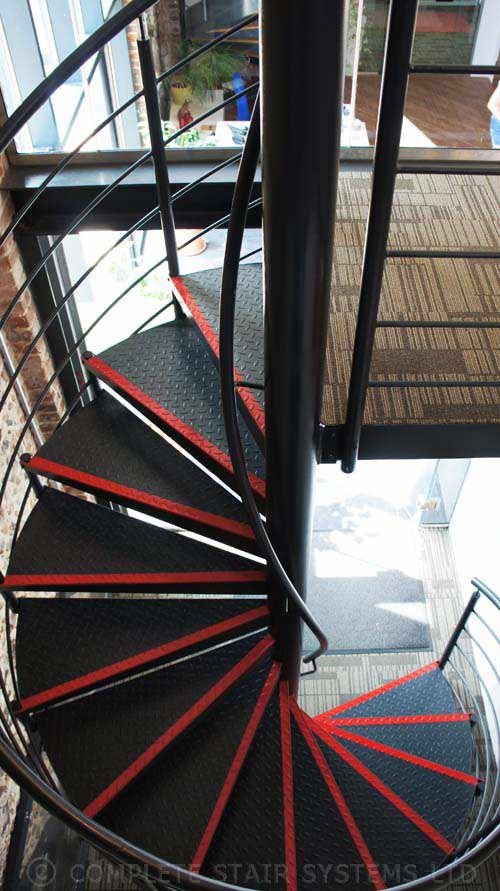

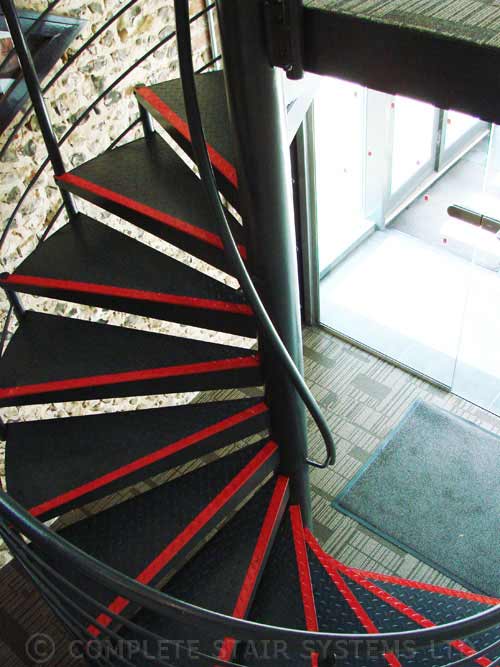

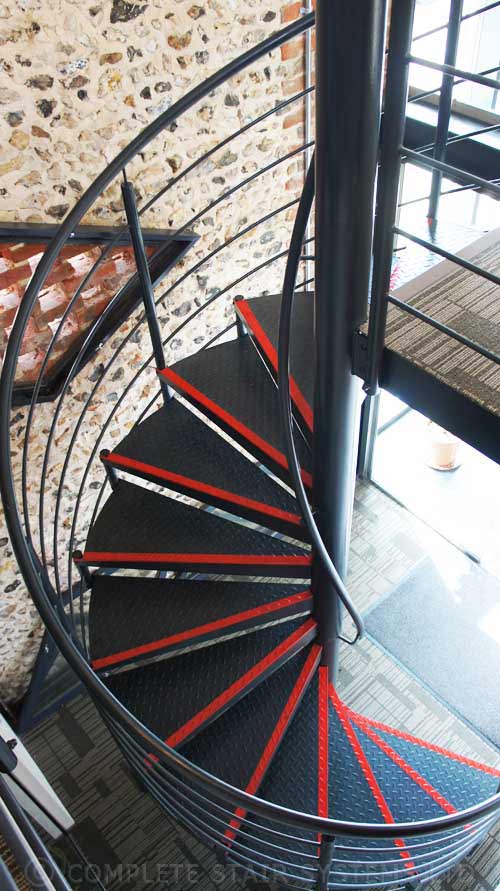

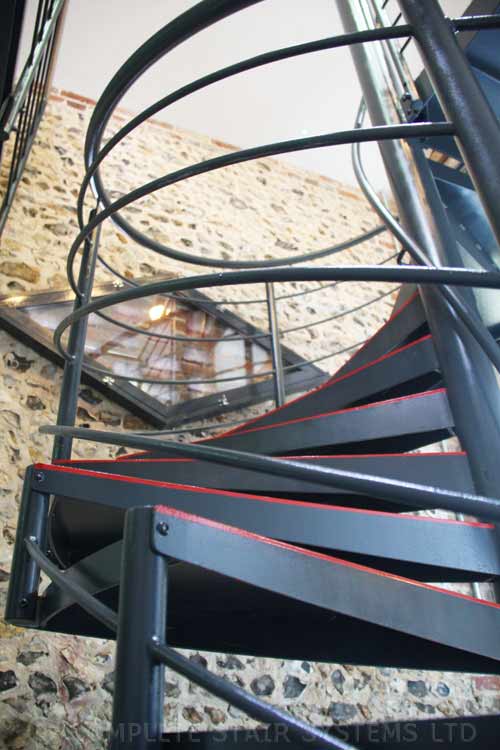

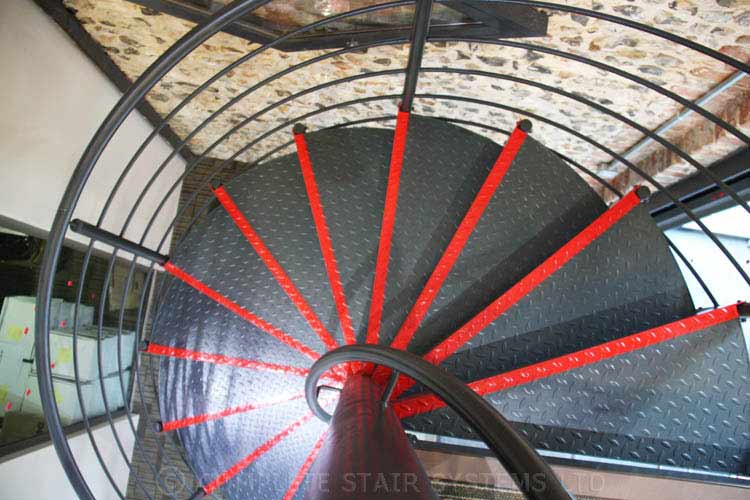

A bespoke commercial spiral staircase supplied to a client converting an old barn into offices.  The spiral had to be in keeping with the industrial feel to the surroundings whilst being a feature.

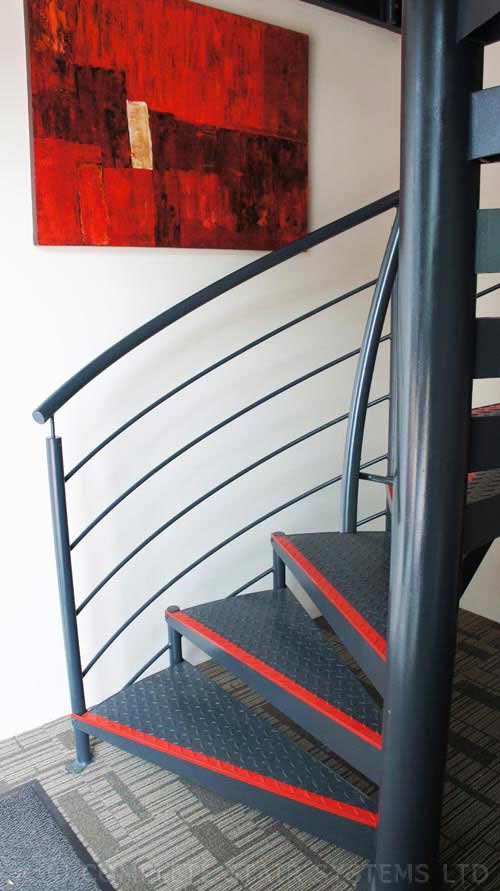

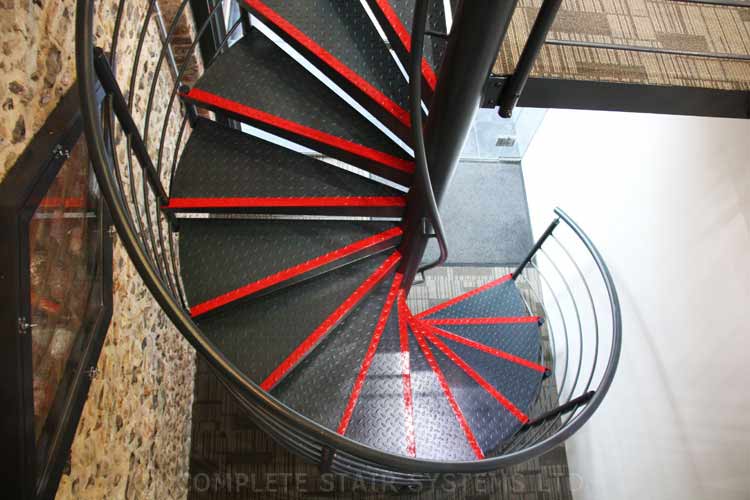

The spiral staircase was supplied with chequer plate steel treads and the balustrade was constructed with horizontal steel rails, topped with a steel handrail.  Being commercial, we included a handrail to the centre column and ensured the clear tread width was 800mm minimum.

The steelwork was supplied primed for on site painting.  This was not only a cost saving but it removed the risk of any damage to the steelwork during assembly.

If you would like a price for your own Spiral Staircase Titchfield, Hampshire’ then please fill out the form below.  We supply this type of stair for both domestic and commercial customers.

Spiral Staircase Titchfield

Technical Specification

Floor to floor height 2665mm
Risers 14 risers
Spiral Diameter 2000mm
Clear Tread Width 800mm
Tread Type Chequer plate Steel
Balustrade Type 10mm Ø horizontal steel bars
Handrail 42.4mm Steel
Finish of steel
Primed for on site finishing
Riser Infill
N/A
Additional matching landing balustrade at each level
