Steel Spiral Staircase Rickmansworth

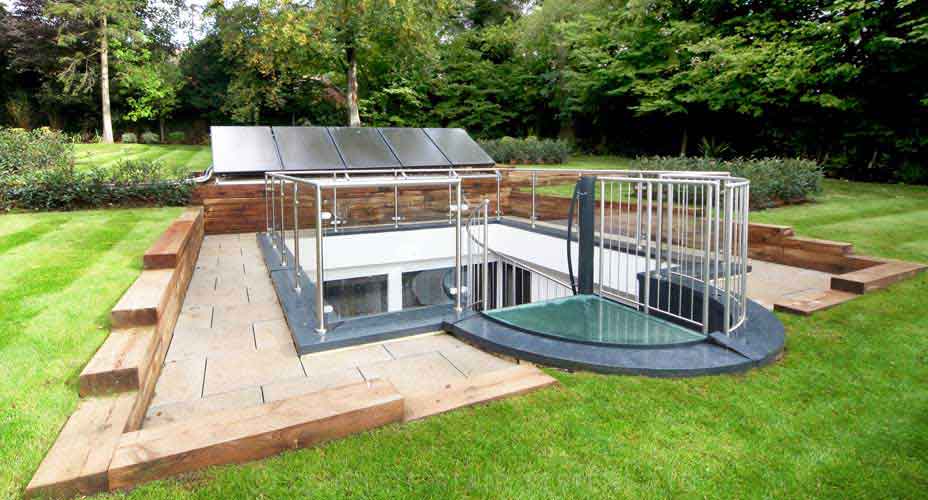

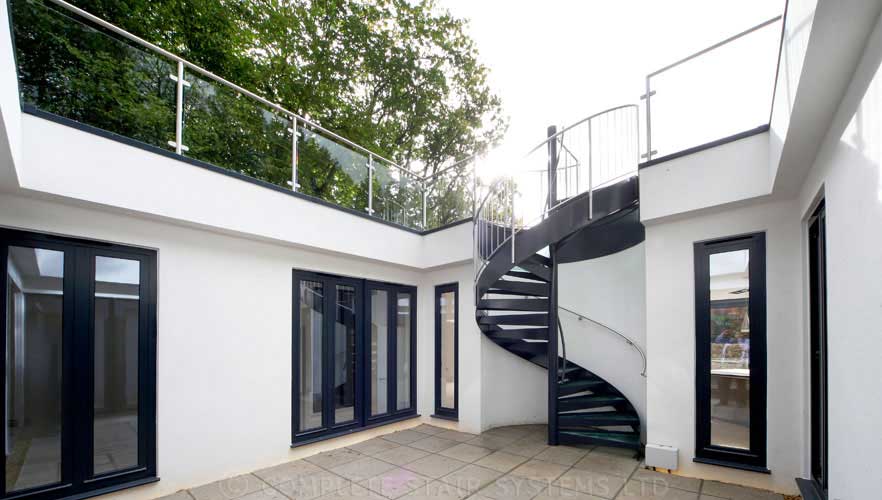

This spiral staircase was supplied to a customer building a subterranean house in Rickmansworth. The property was build around a central square void which housed our external spiral staircase. The roof of the property was effectively their garden with grass and vegetation.

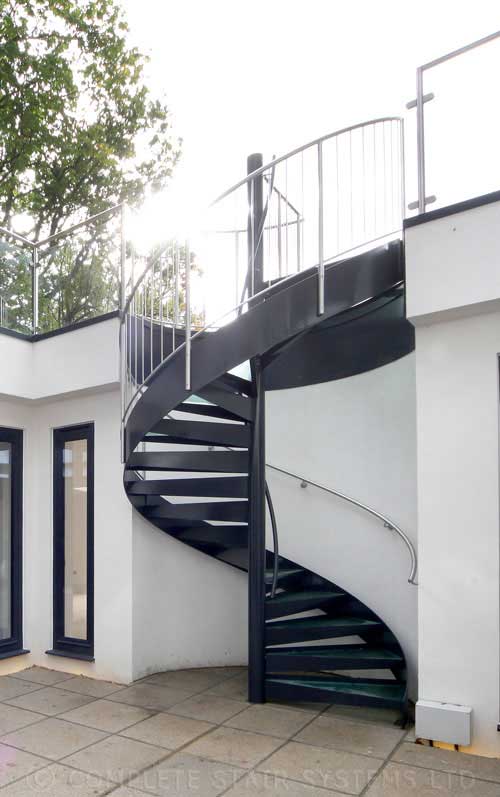

The spiral staircase was fully galvanised before going through the powder coating process to ensure no corrosion. The treads were constructed with frosted glass and the balustrade was made up with vertical stainless steel spindles and a stainless steel handrail. Along the platform, and running horizontally around the entire central void was glass balustrade with brushed stainless posts and handrail.
For a price for your Spiral Staircase Rickmansworth project, please fill out the form below.
Spiral Staircase Rickmansworth
Technical Specification
Floor to floor height | 3400mm |
Risers | 17 in total |
Spiral Diameter | 2400mm |
Clear Tread Width | 950mm |
Tread Type | 30mm laminated glass |
Balustrade Type | 10mm Ø vertical stainless steel spindles |
Handrail | 42mm diameter stainless steel |
Finish of steel |
Galvanised and powder coated |
Landing balustrade |
matching balustrade around opening |
Additional | External stringer 280 x 8mm |
