Beech Spiral Staircase Surbiton

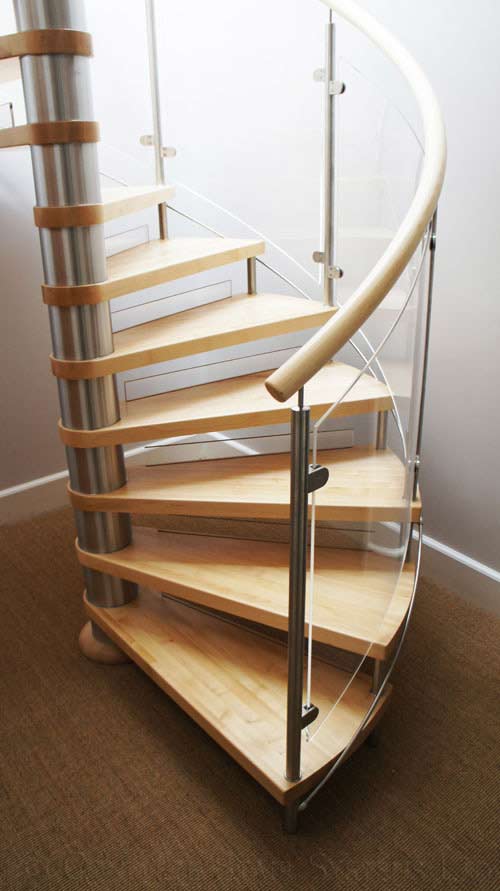

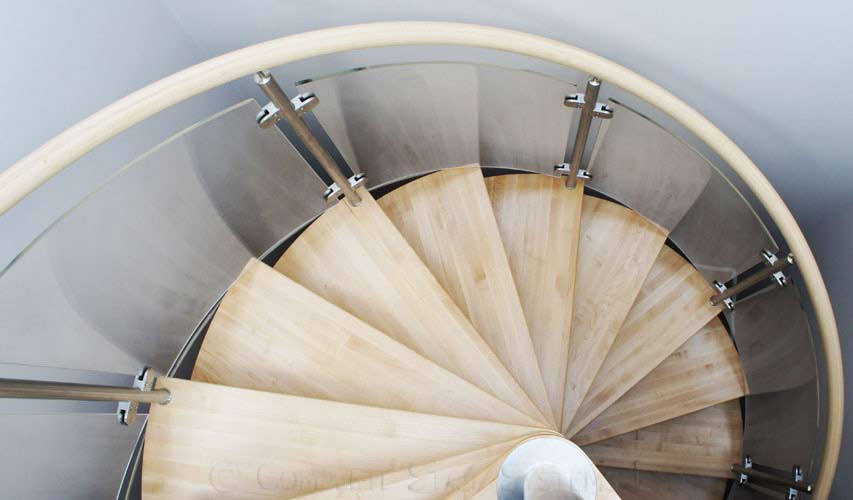

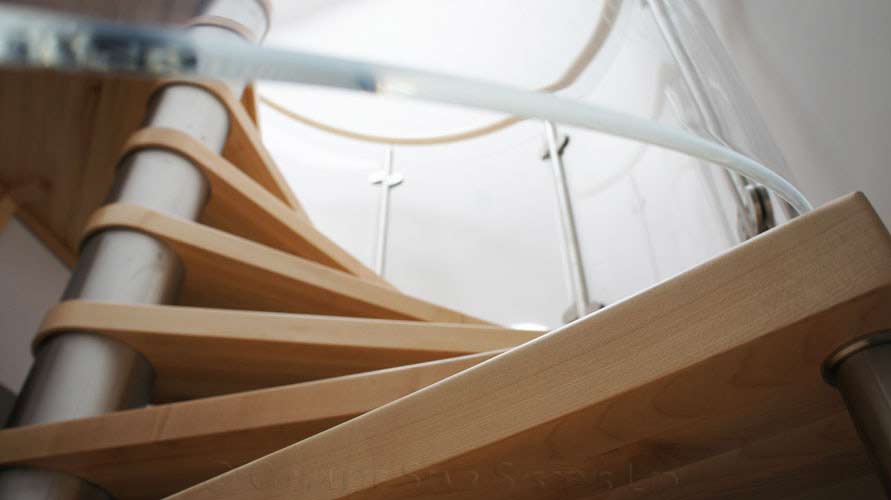

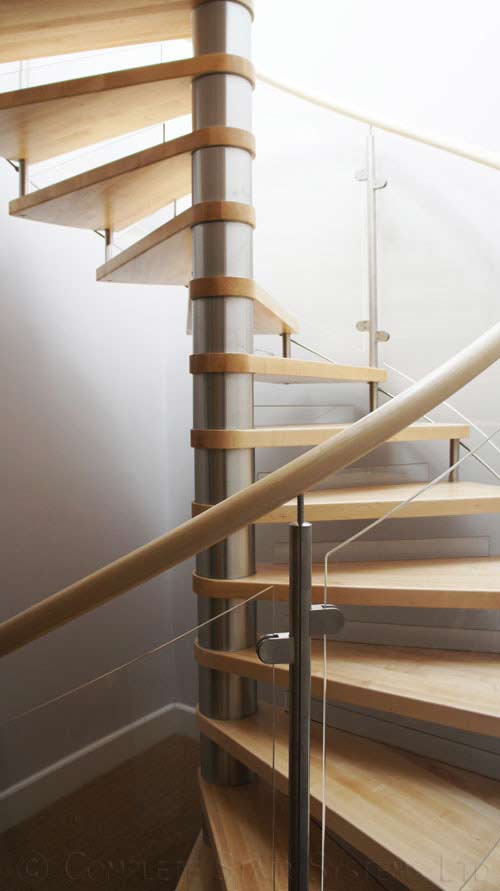

‘Spiral Stair Surbiton’ was a large spiral staircase in this huge refurbishment. There were walls on three sides and a huge domed roof window above so the customer was keen to encourage the passage of light. For this model 71 spiral staircase we went with open risers and curved acrylic panels to maximum the light and open feel.
The model 71 spiral staircase is a bespoke spiral. It is constructed with circular barrels which slid over the centre column and separate the solid wooden treads The centre column which is hidden on completion has a steel column running up the middle giving the entire spiral staircase stability.
The wood available for this stunning spiral staircase in always hardwood for strength :- Beech, Oak, Ash, Maple, Birch & Walnut
The balustrade wrapping around the perimeter of the spiral is formed with :- Vertical Steel Spindles, Horizontal steel rails, Curved acrylic panels, Curved Glass Panels, Curved Perforated Steel Panels
The handrail and newel posts on the Model 71 spiral staircase are formed in timber or steel to match rest of the materials. The steel tends to be either brushed or polished stainless steel or powder coated. The wood is either oiled, varnished or stained in the factory and sometime left untreated to be stained on site.
Each Model 71 spiral staircase supplied is a one off. The spiral is drawn carefully to make sure the enter and exit point is correct and there are no headroom issues. As the spiral is bespoke, the platform can be made to suit the opening if needed and the overall outer diameter of the spiral can supplied upto 2200mm.
If you would like a price for this stunning spiral staircase, please fill out the form below.
Beech Spiral Staircase Surbiton
Technical Specification
Floor to floor height | 3350mm |
Risers | 16 @ 209.37mm |
Spiral Diameter | 2100mm |
Clear Tread Width | 910mm |
Tread Type | 50mm Maple |
Balustrade Type | 8mm Curved Acrylic Panels |
Handrail | 50mm Ø Maple |
Centre Column | Brushed Stainless Barrels |
Finish of Steel | Brushed Stainless Steel |
Additional | Mini Acrylic riser pieces & landing balustrade |
